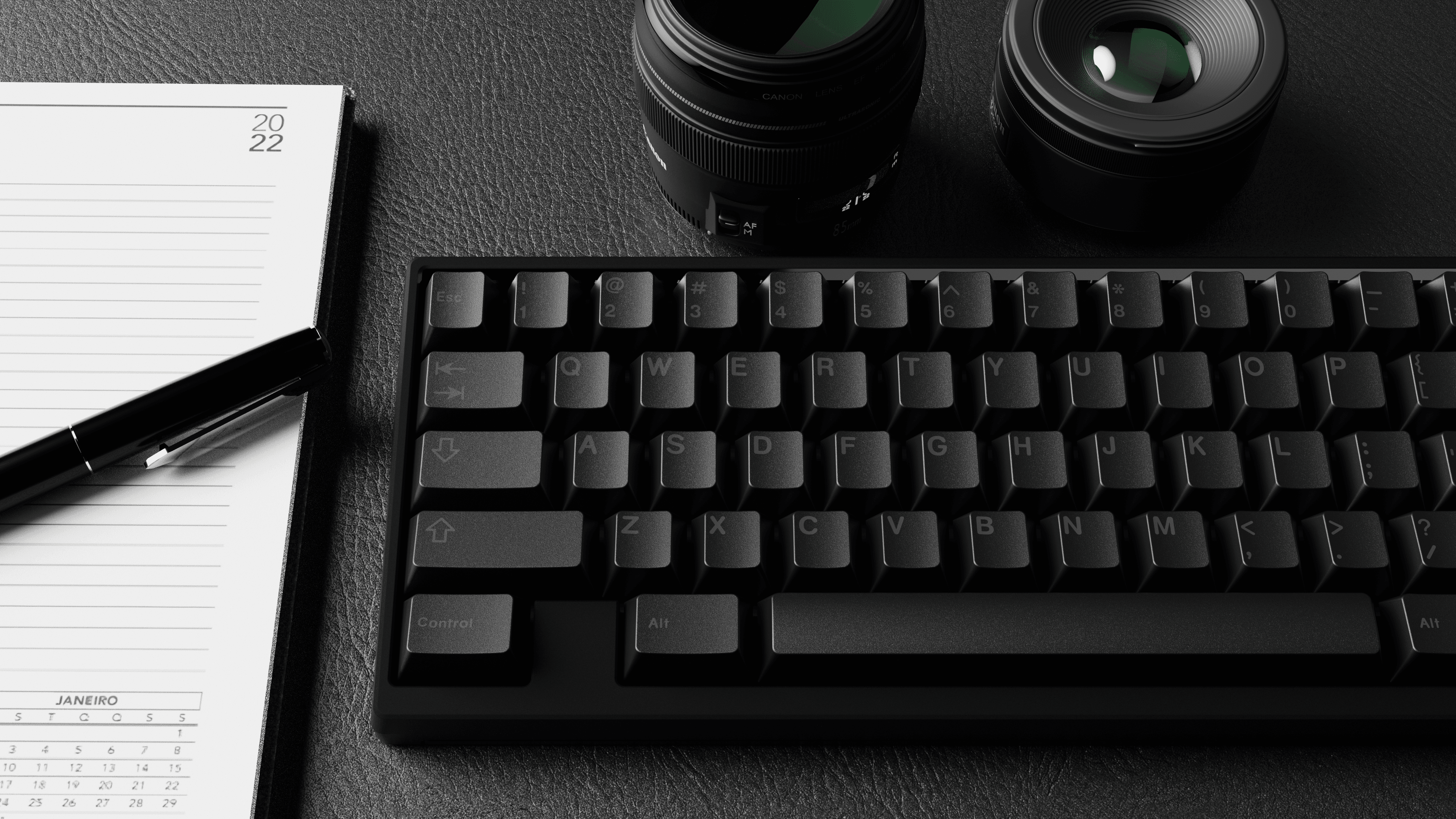

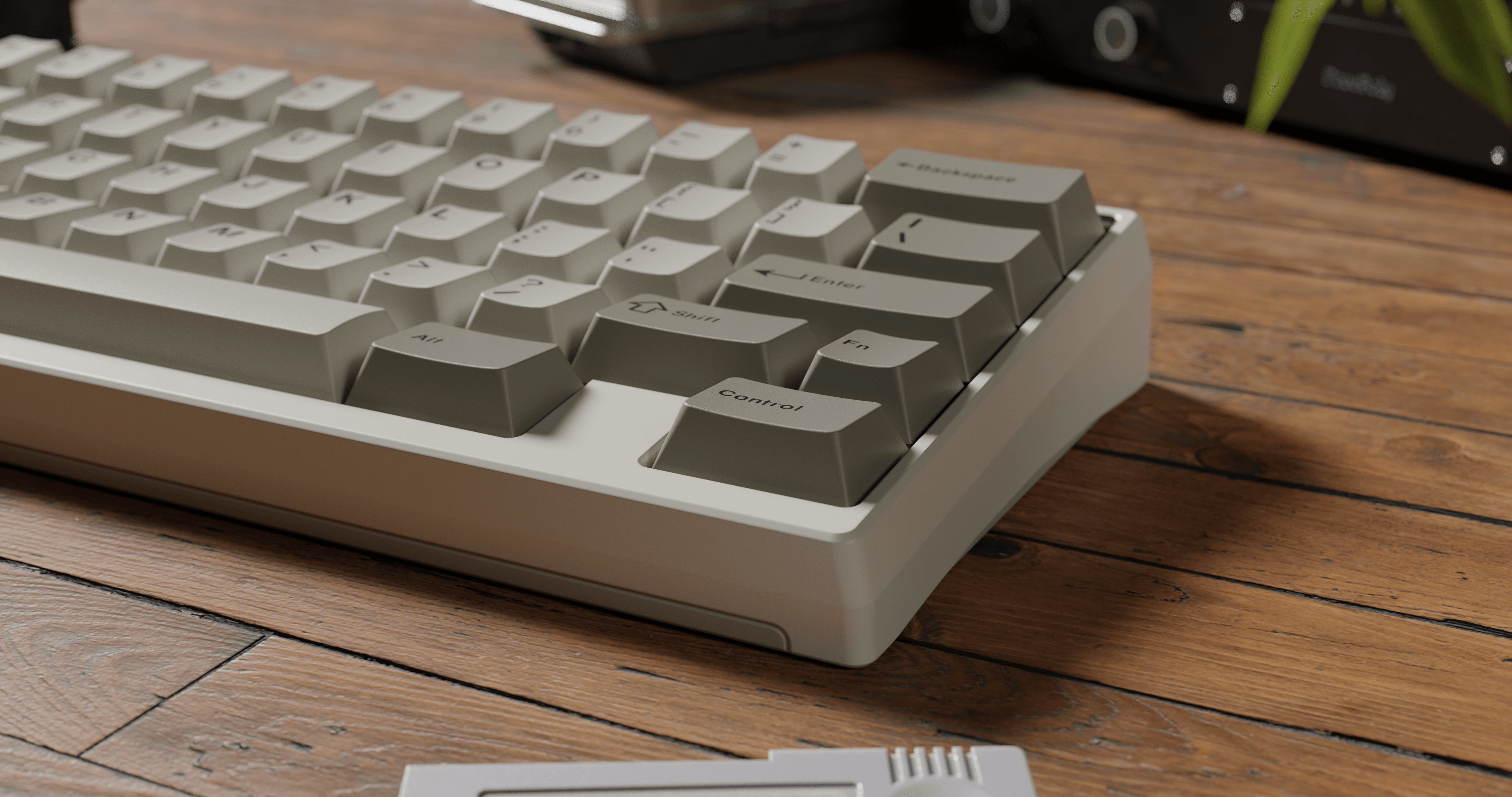

LUMINKEY60 LX Keyboard(GB)
Pre-order Information
By joining the GB, you agree to our Group buy policies and the inability to be refunded after purchasing. You also agree that the expected ship date may alter from the provided timeline. Updates will be provided in the discord. The groupbuy opens September 15th and ends on October 15th. The expected ship date is 3-4 months after the start of the pre-order. This timeline is subject to change. Updates will be posted via the discord.
Specifcations
- Size: 296.7mm x 112.2 x 17.5mm
- Typing Angle: 6°
- Layout: 60% ANSI/ISO
- Mounting: Gummy Oring, Dampened Gummy Oring (Gummy oring with top gasket), Gasket Block
- Programming Support：VIA-VIA (usevia.app) (Tri-Mode)
- Cable type: Type-C Data Cable
- Switches: Noir Switches by BokehBob and Keyboard_Dad
- Stabilizer: Gateron Stabilizers
- Connectivity: Wireless/2.4G/Wired
- Compatible System: Windows/MacOS
- PCB: 1.6mm tri-mode hot-swappable PCB (with 4400mAh battery)/1.6mm Wired mode hot-swappable PCB
- Number of Keys: 61
- Spacebar Support: 6.25/7u
Material
- Case: 6063 CNC Aluminum / Polycarbonate
- Weight: Brass

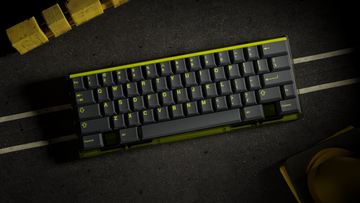

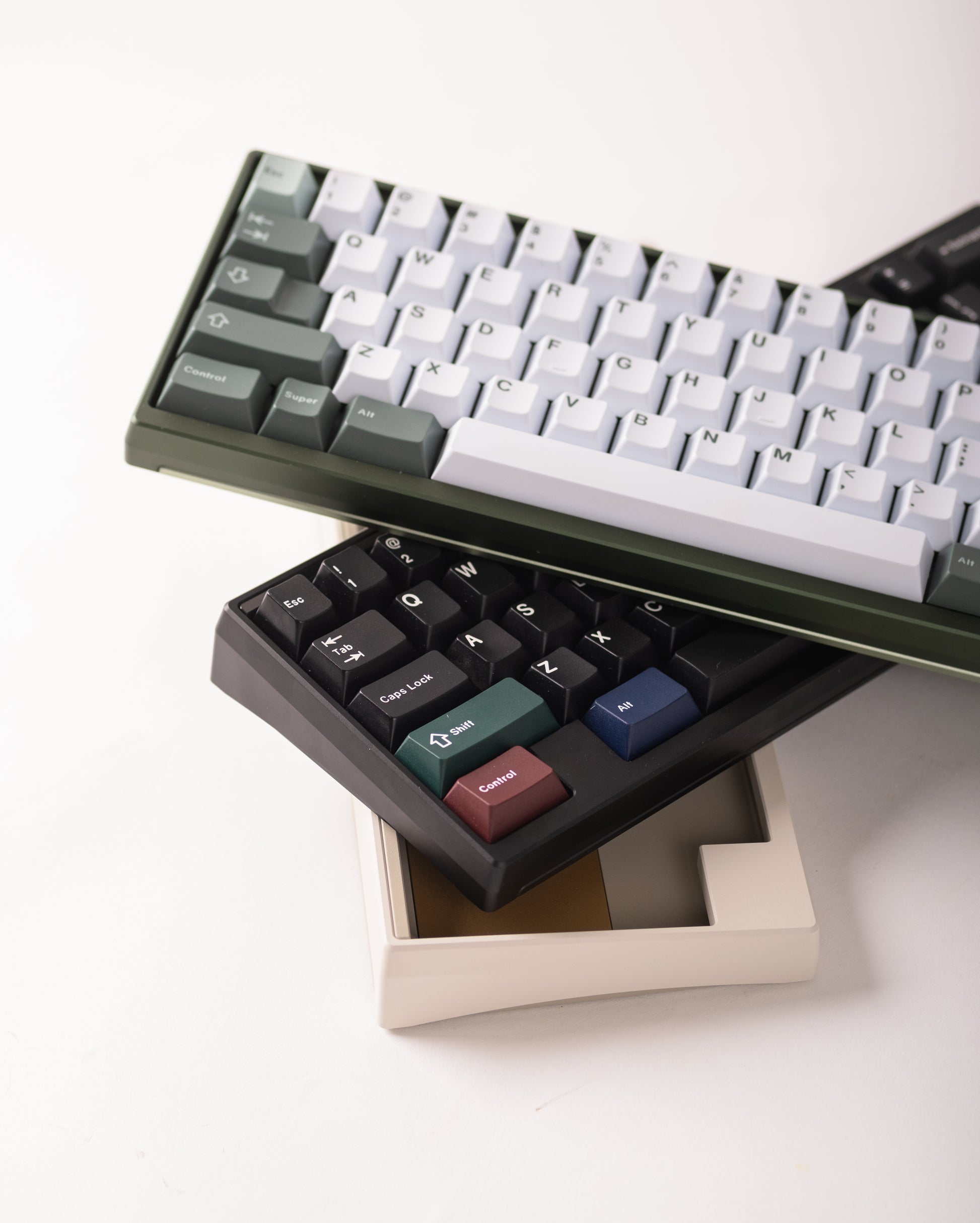

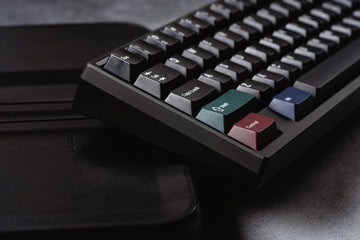

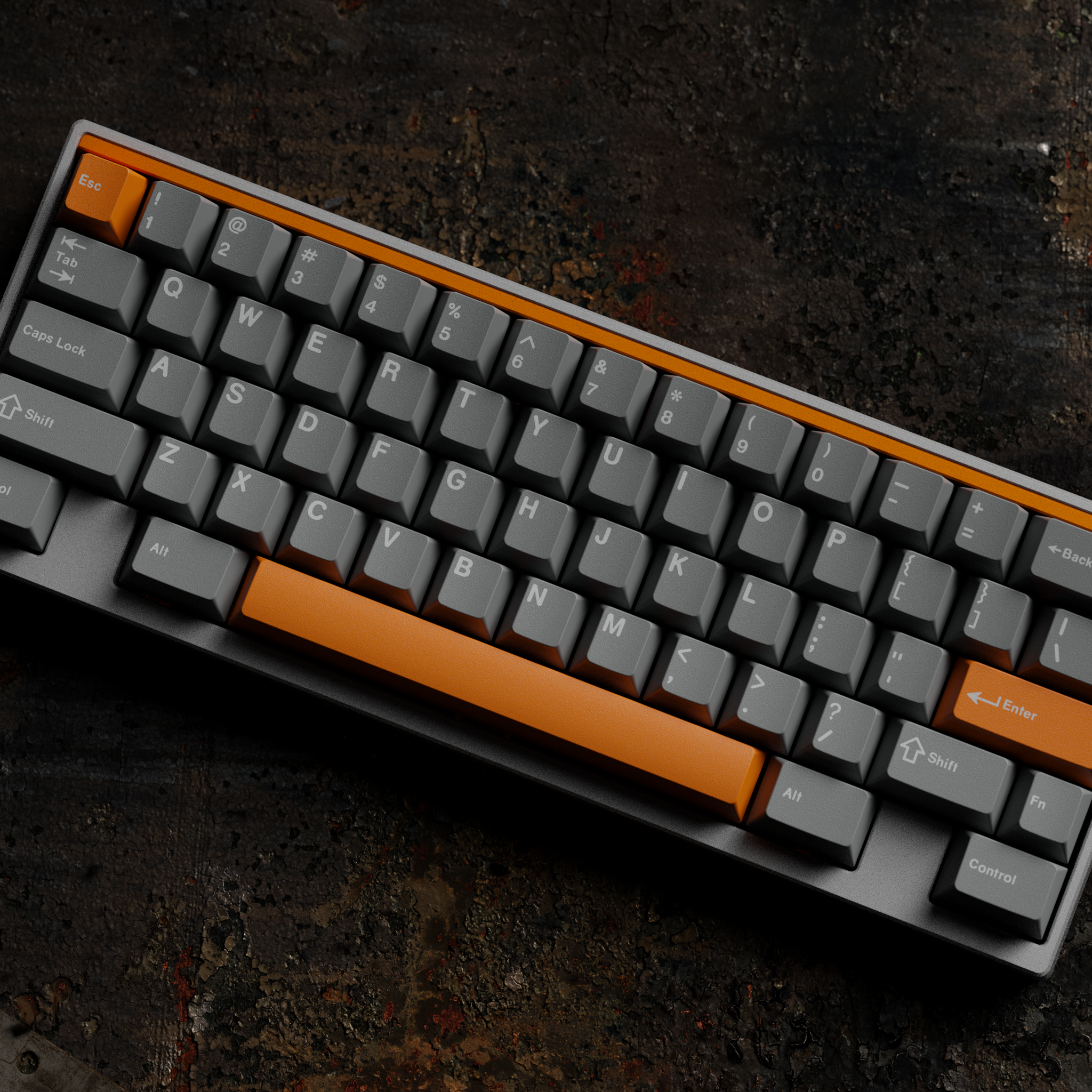

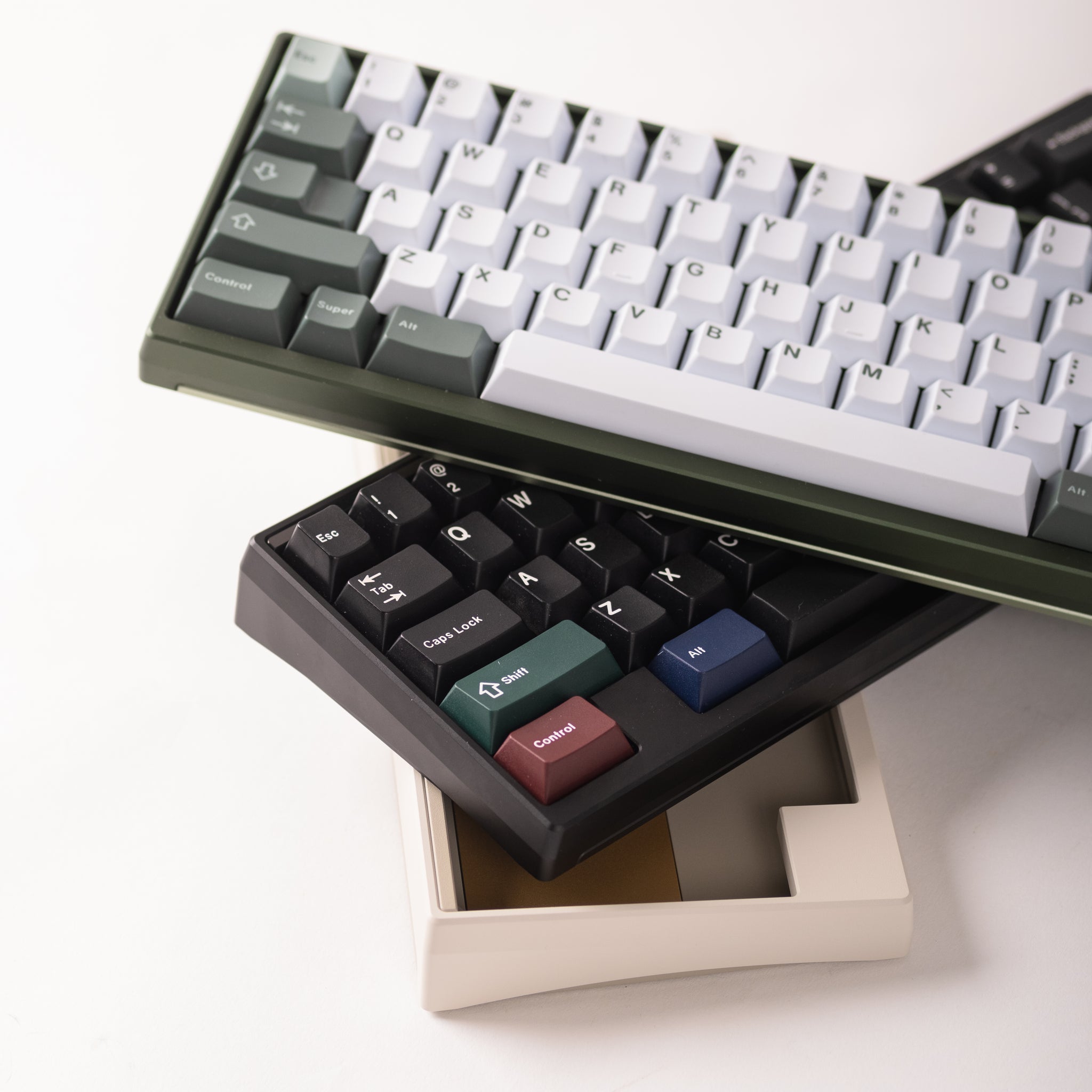

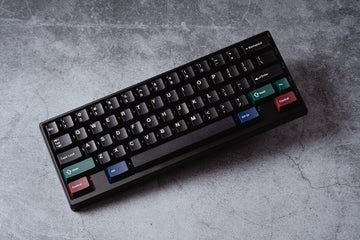

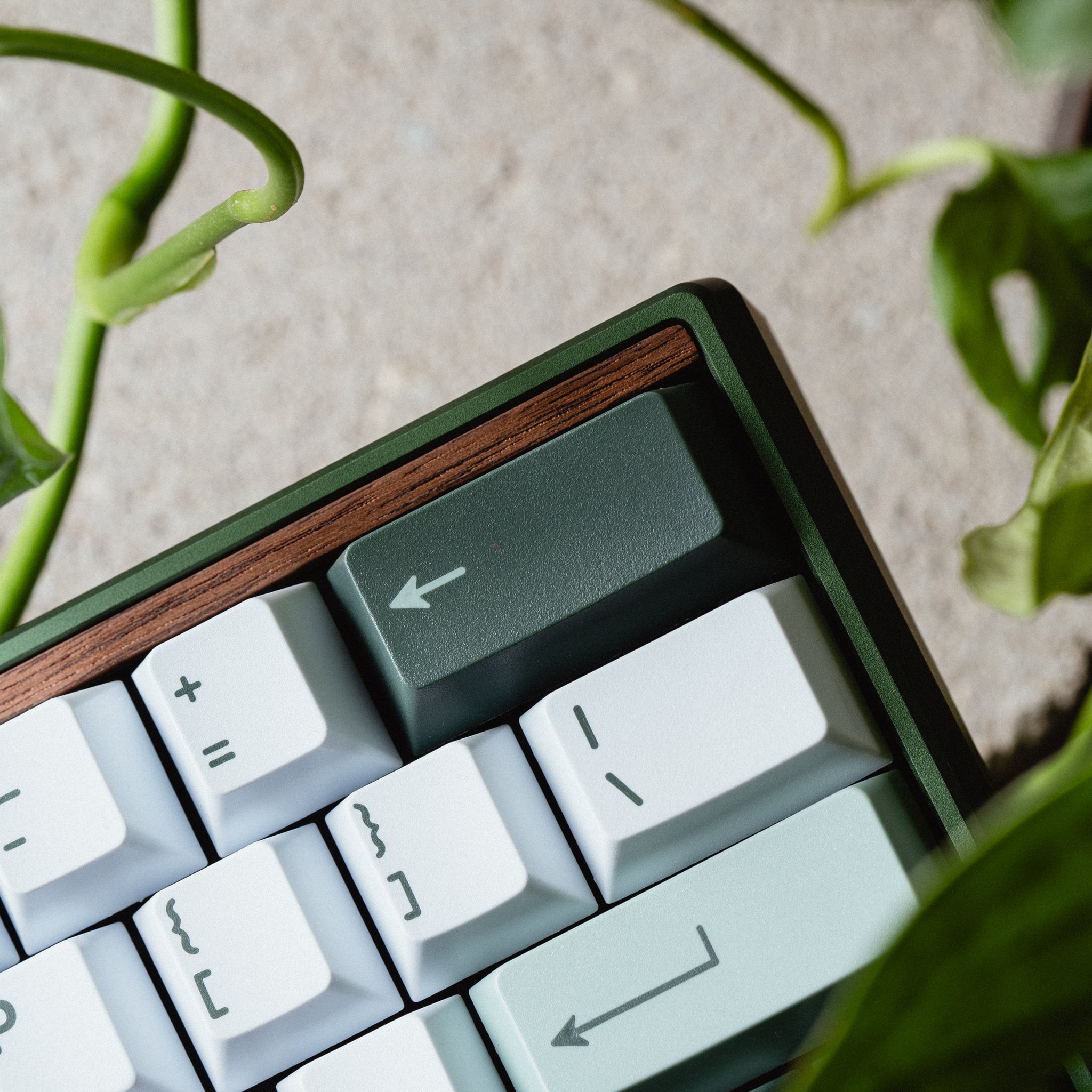

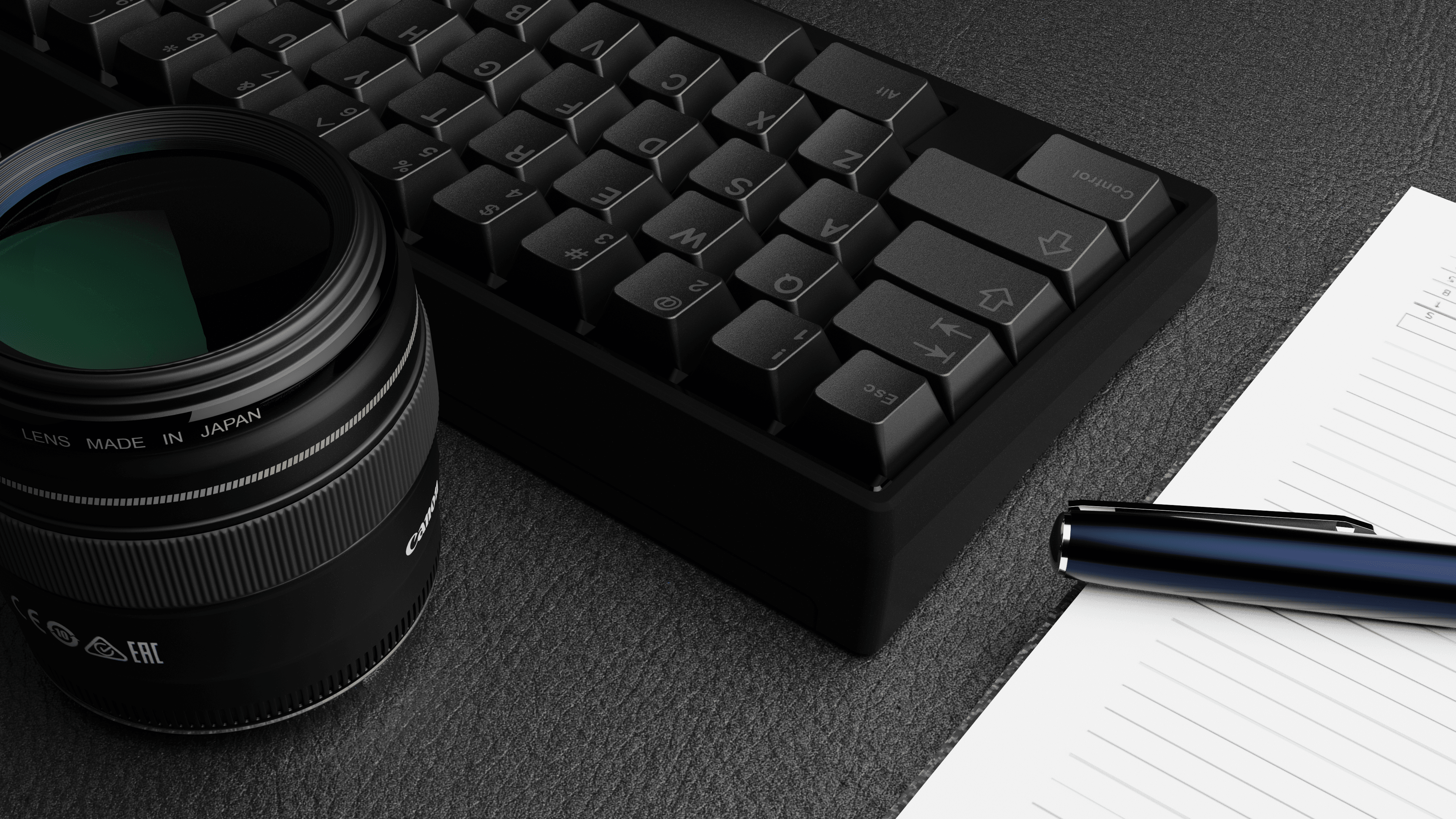

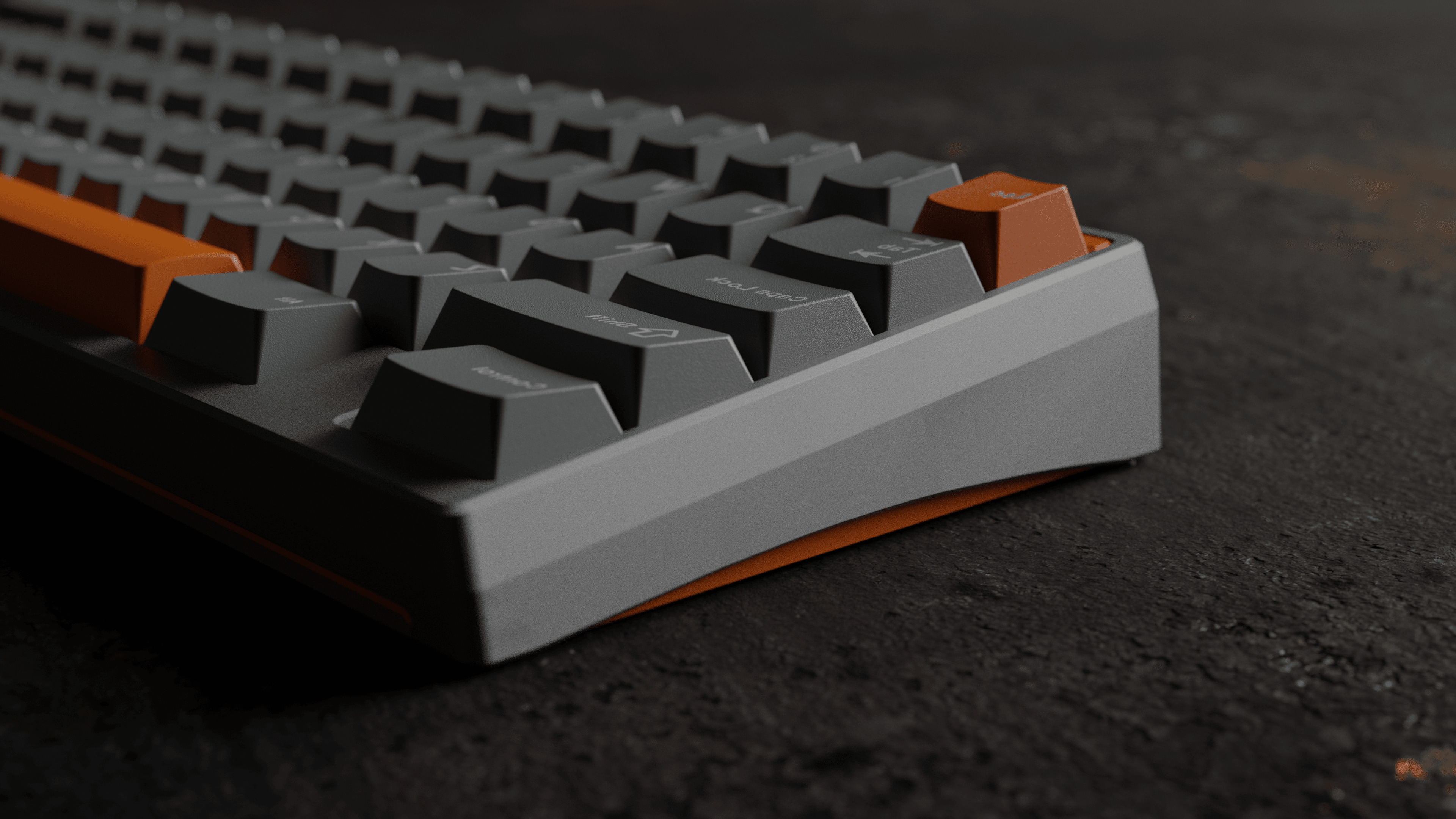

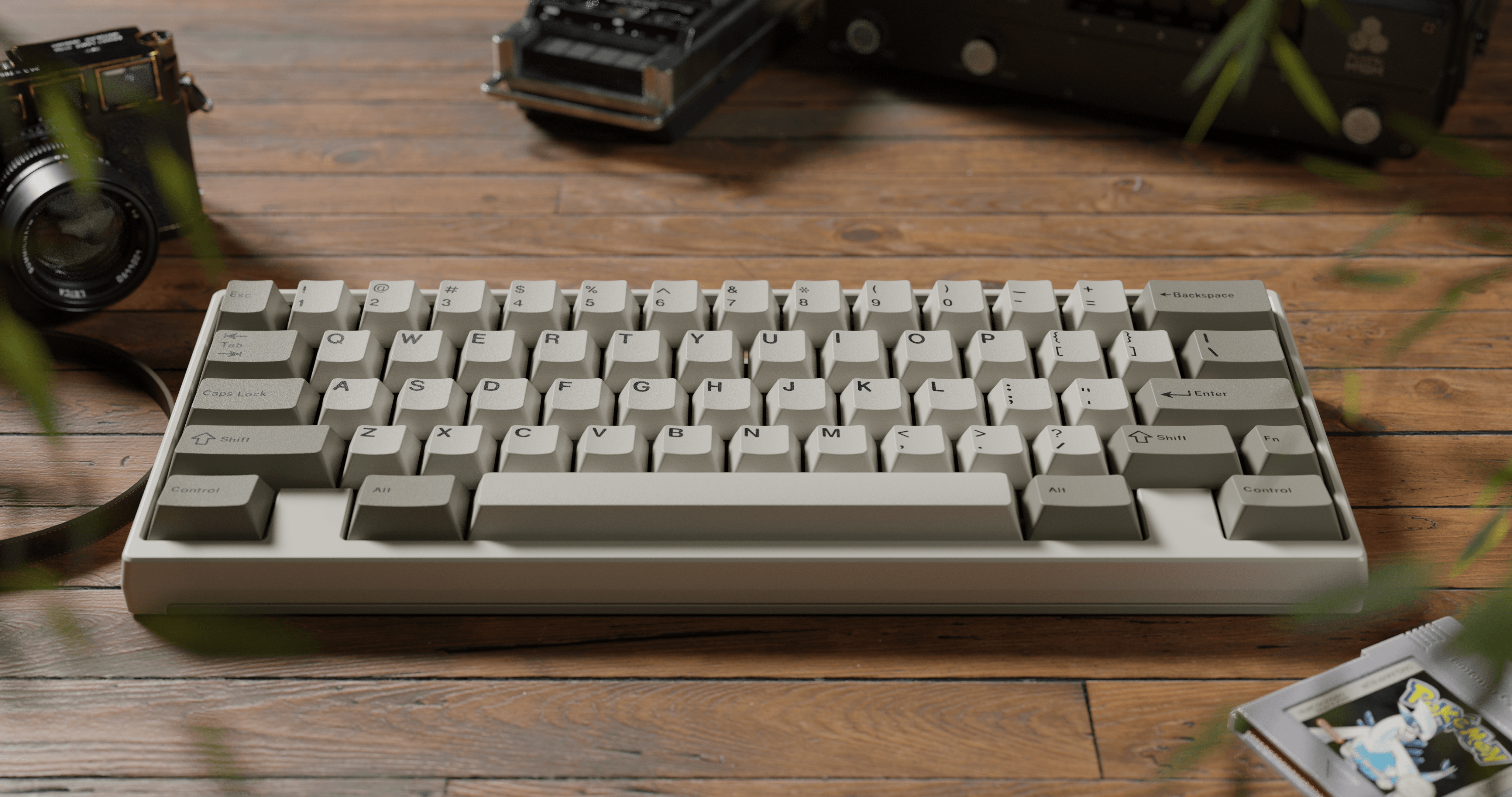

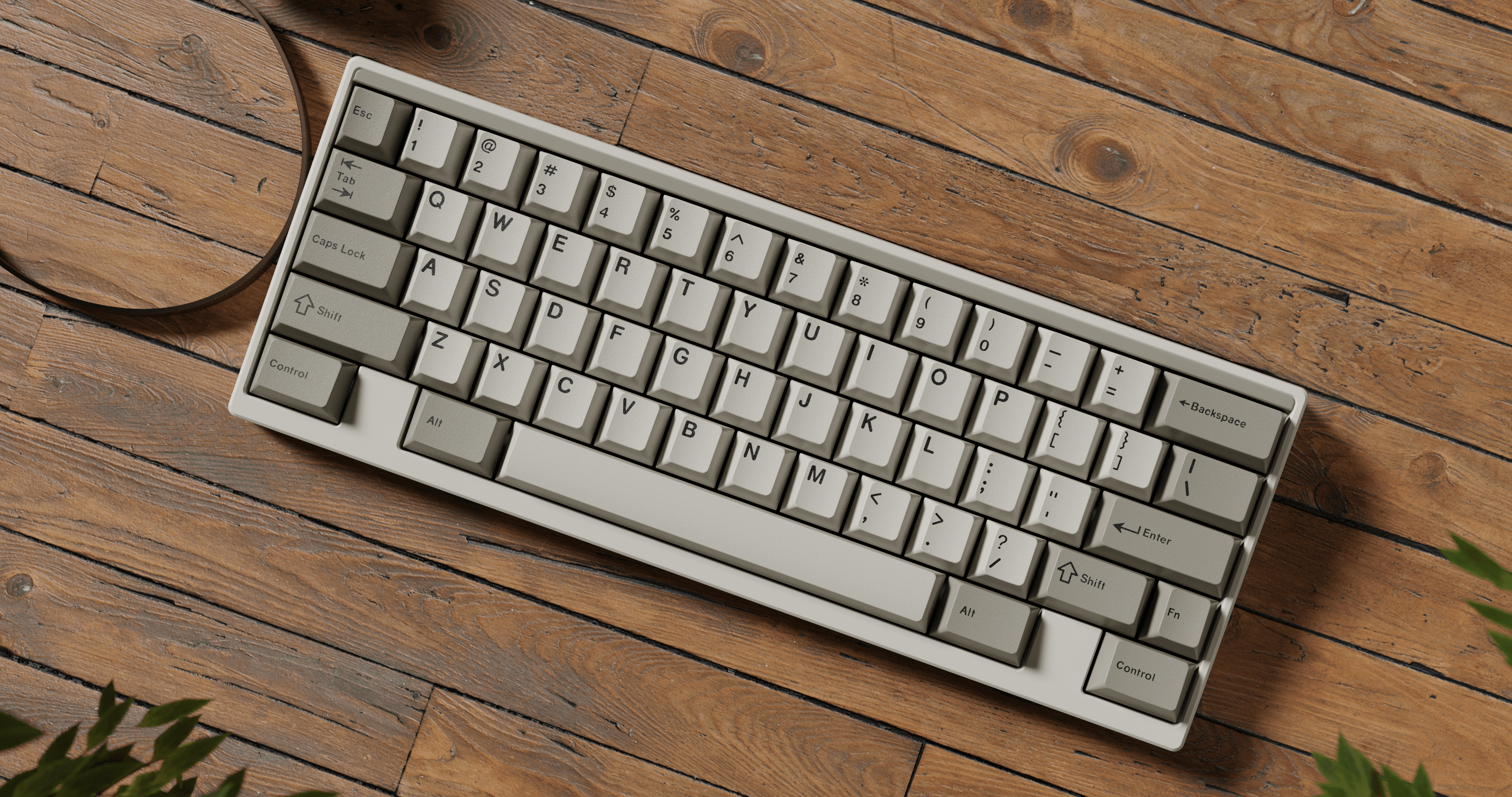

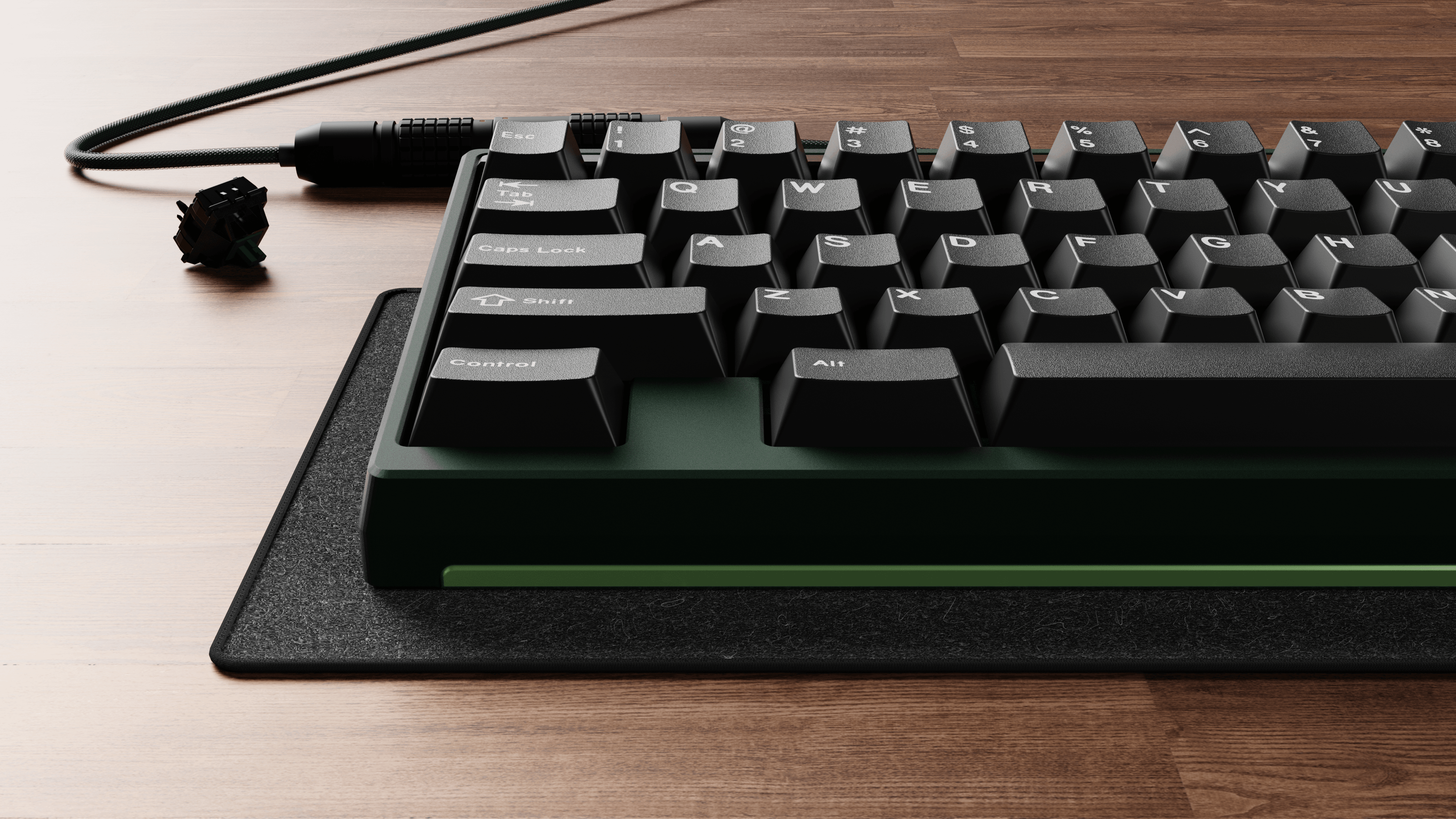

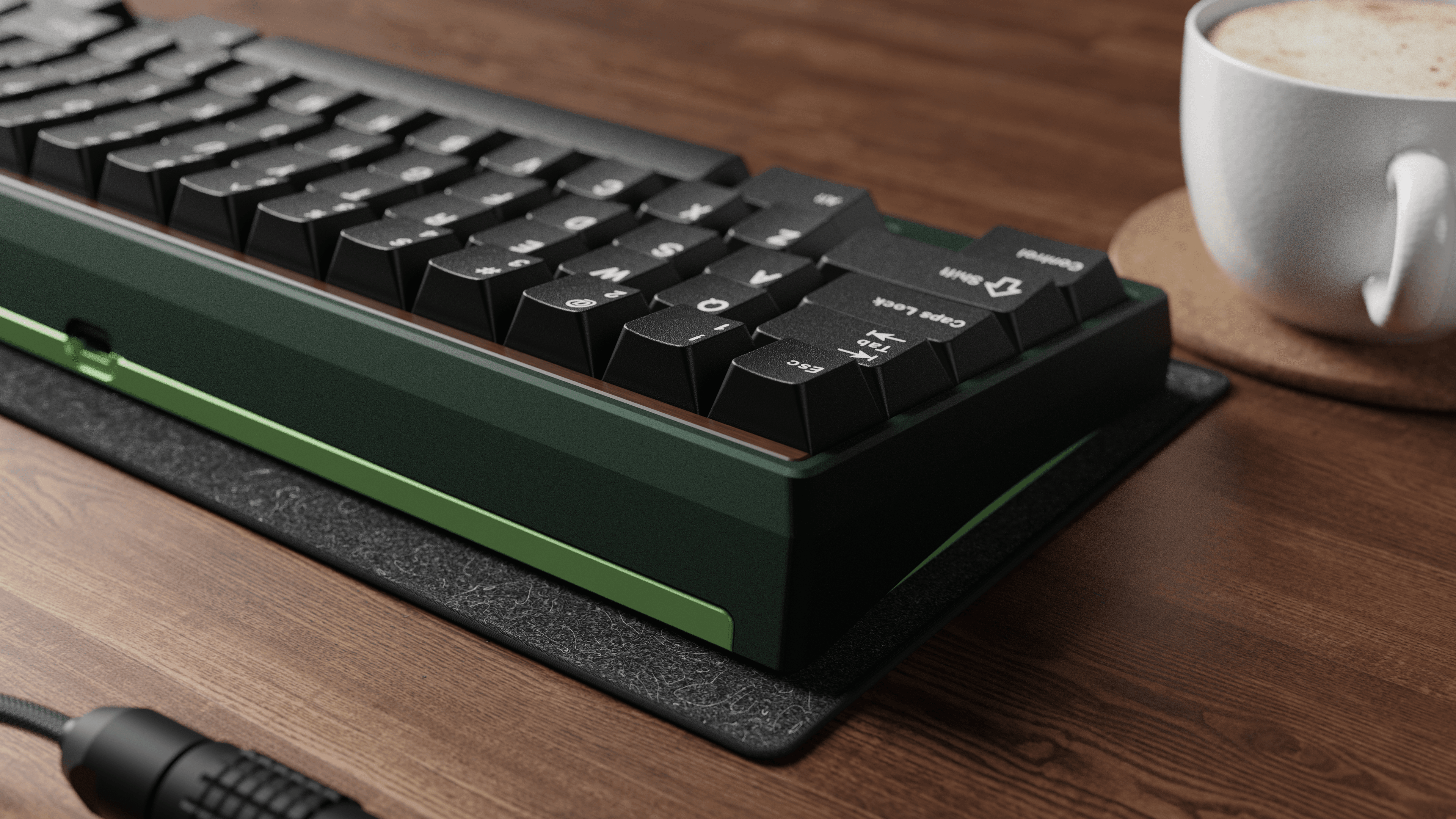

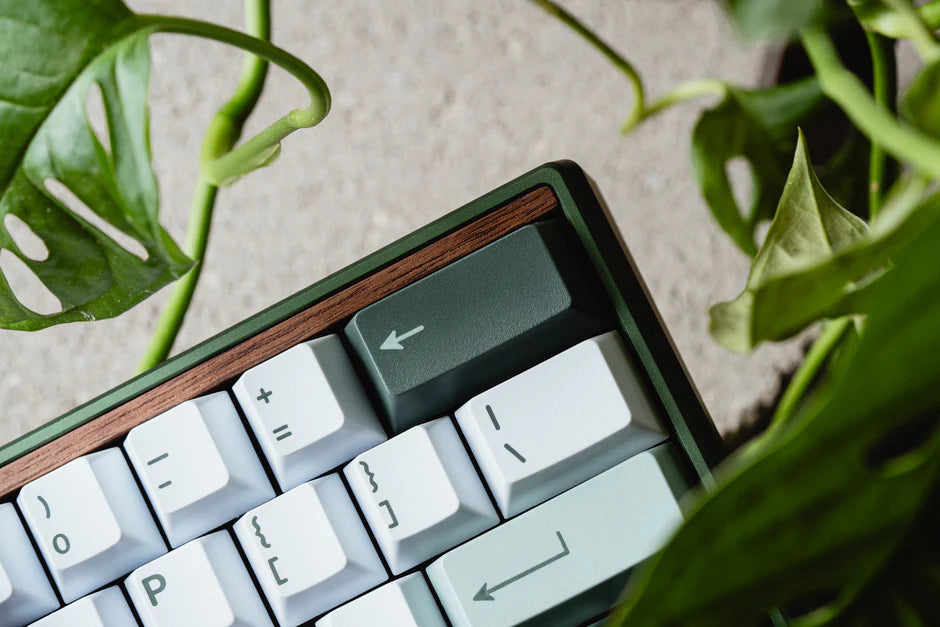

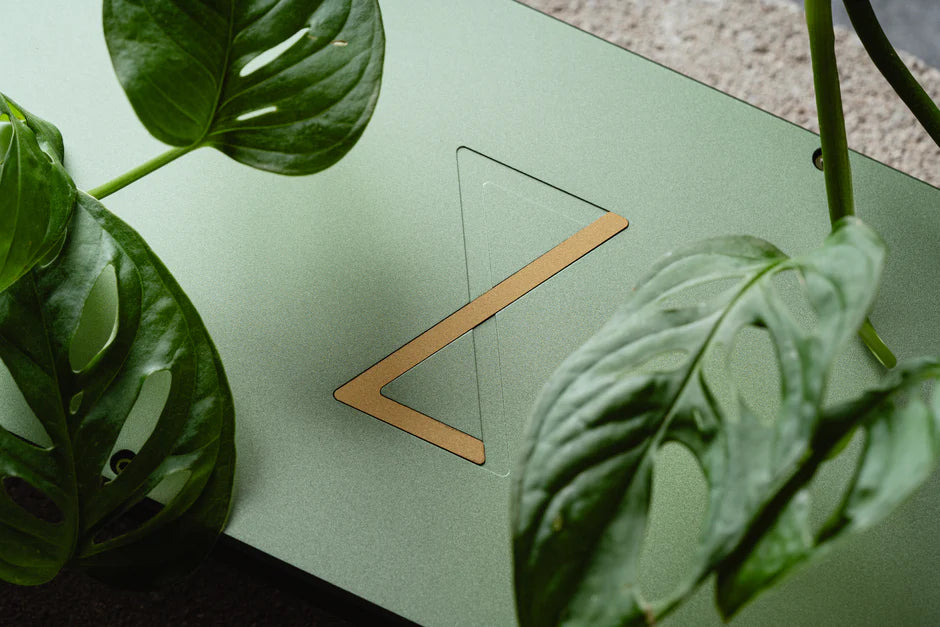

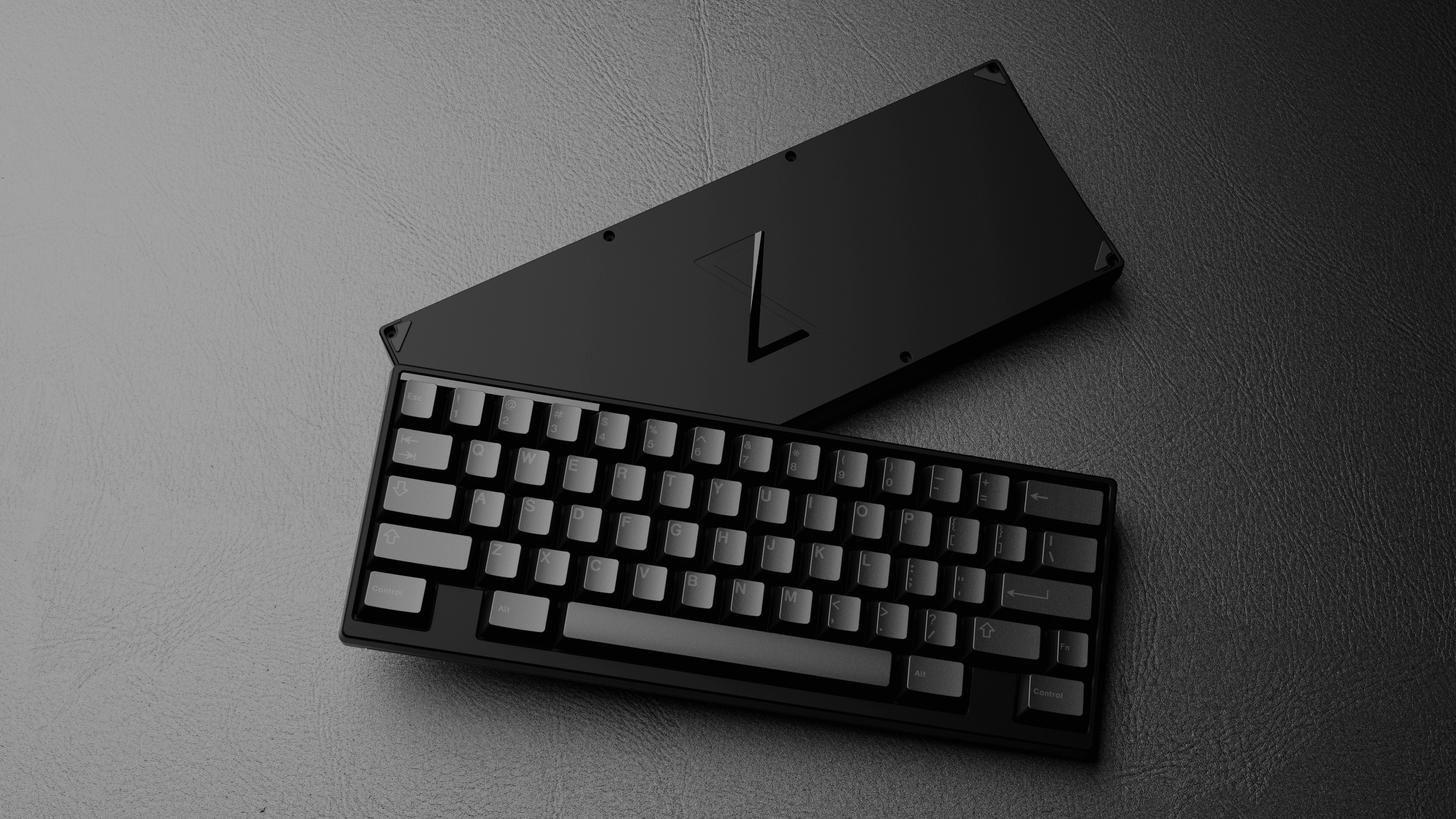

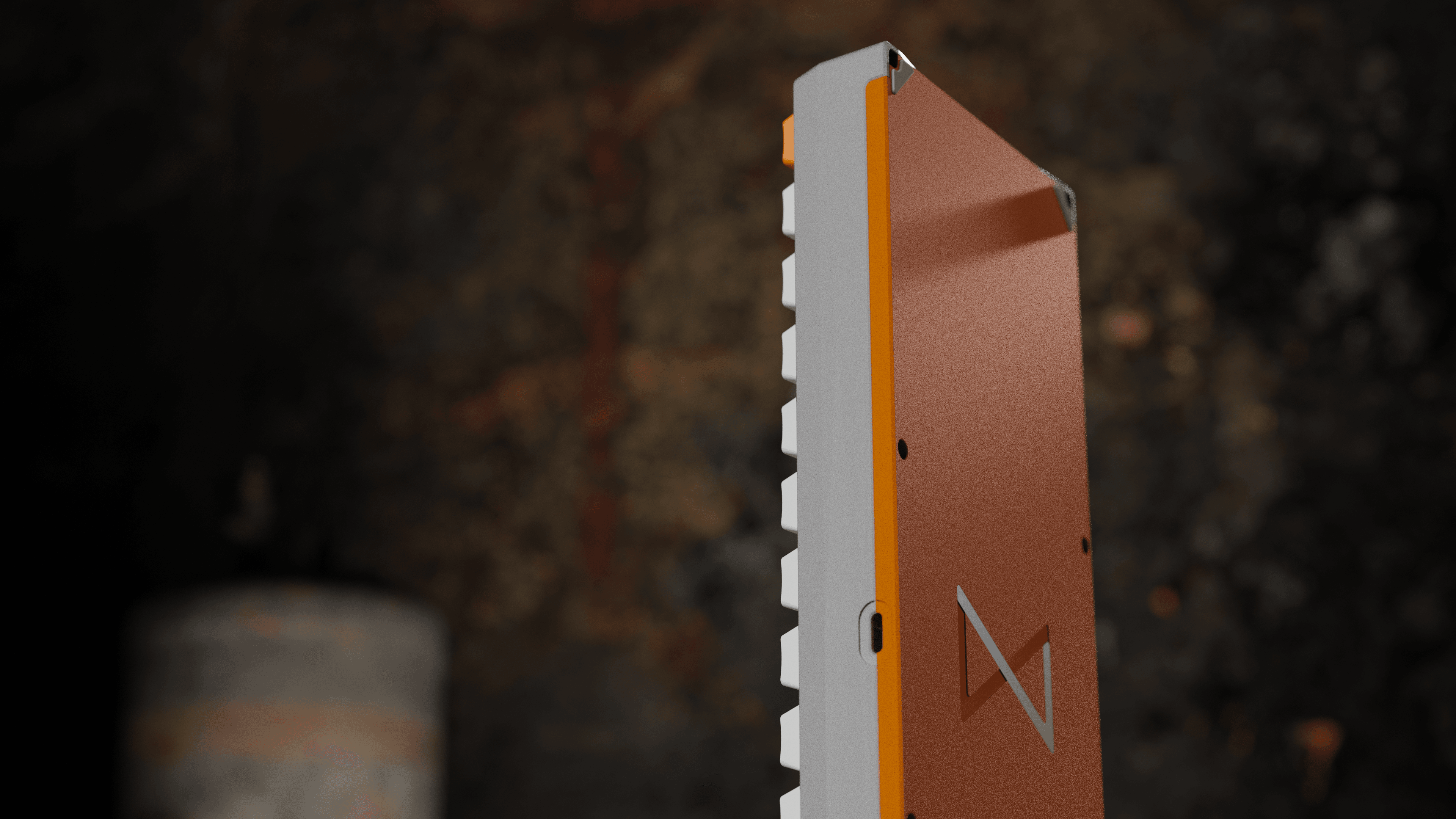

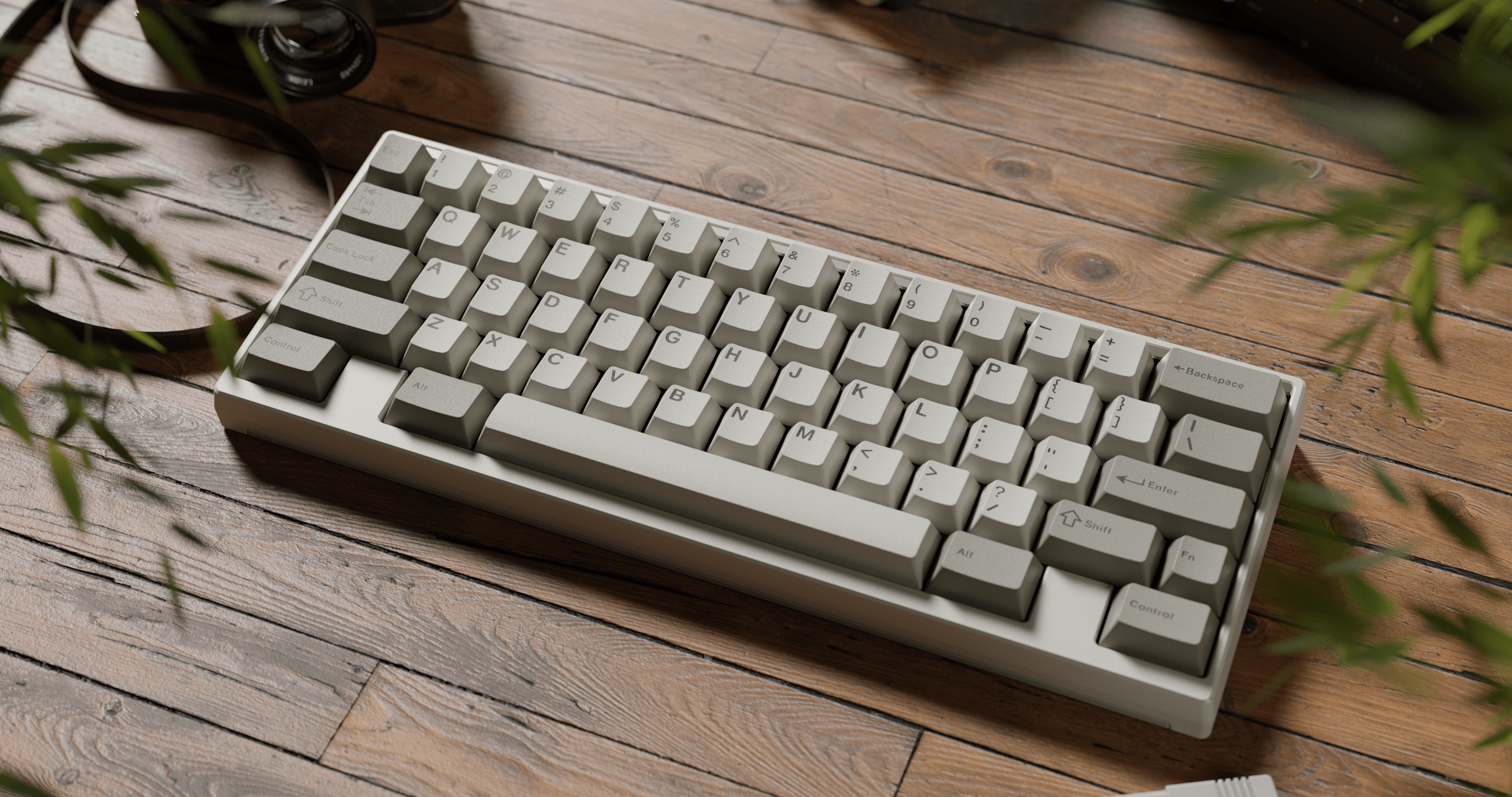

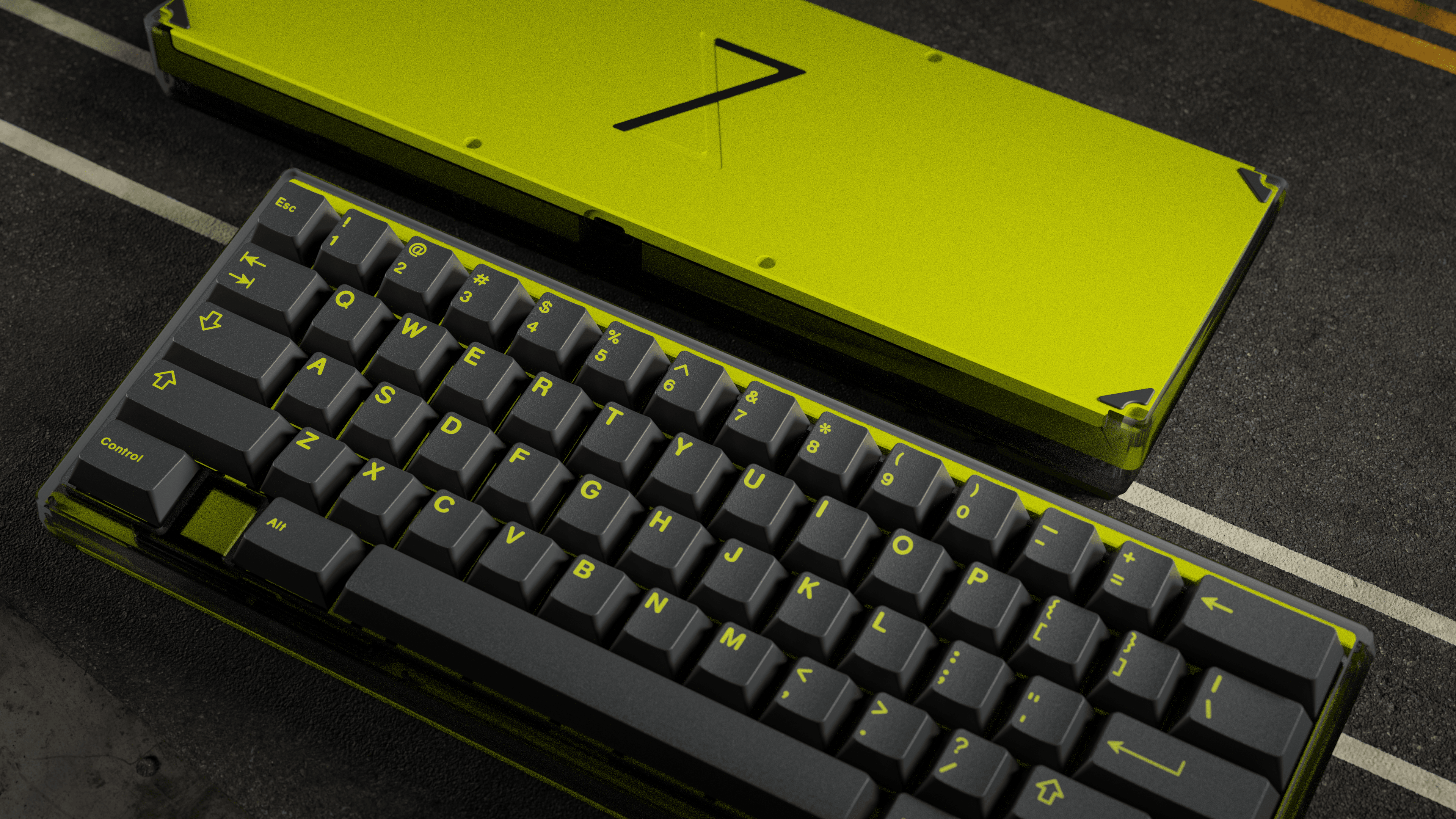

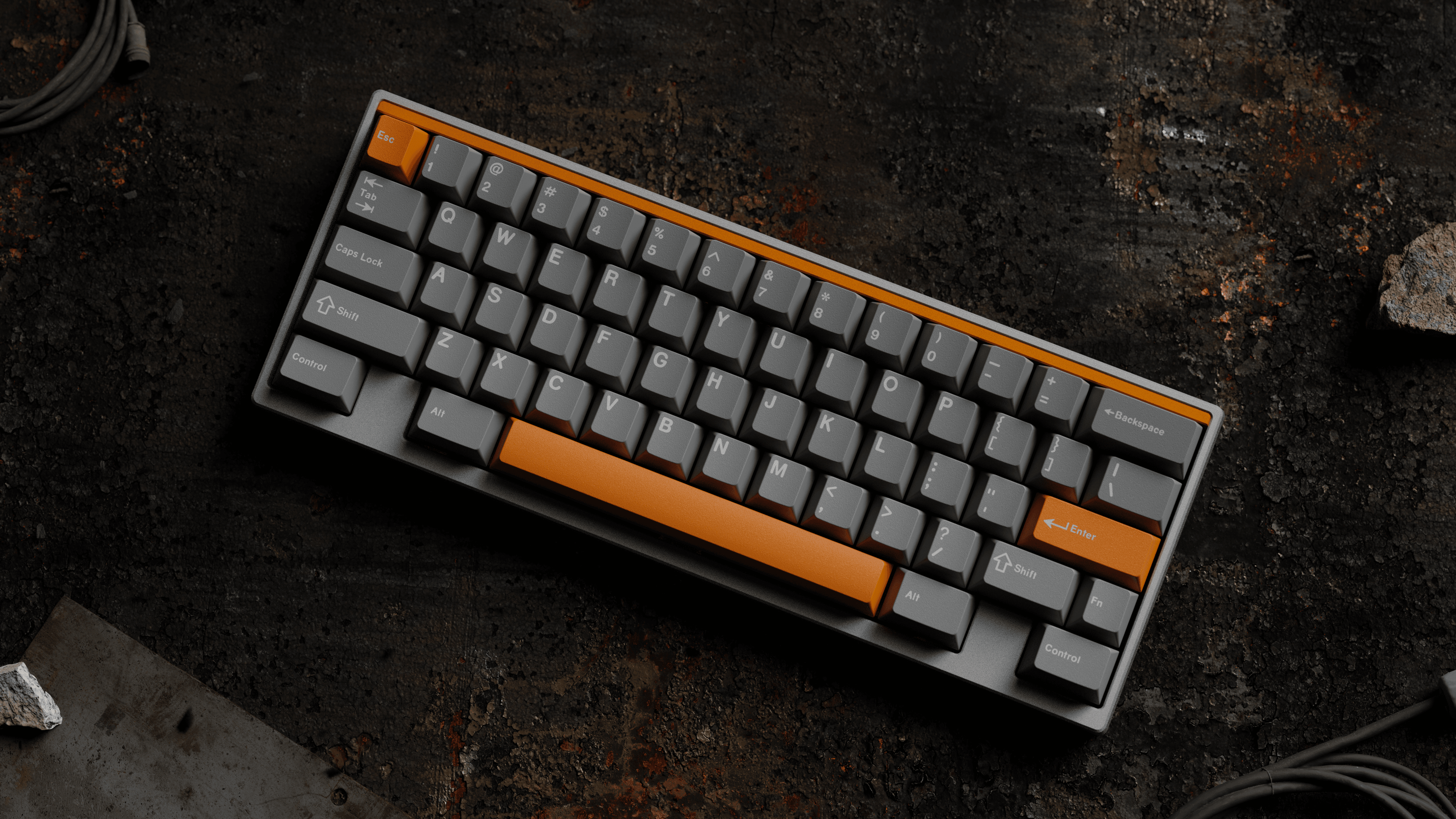

- Color: Silver Orange, Green Wood, Blackout, Cream, Neon
Polling Rate
- Wired: 1000Hz
- 2.4G: 1000Hz
- Wireless: 125Hz
Law Latency Data Mode
- Wired: 2 millisecond
- 2.4G: 3 millisecond
- Wireless: 7 millisecond
Latency Data
- Wired: 8 millisecond
- 2.4G: 9 millisecond
- Wireless: 13 millisecond

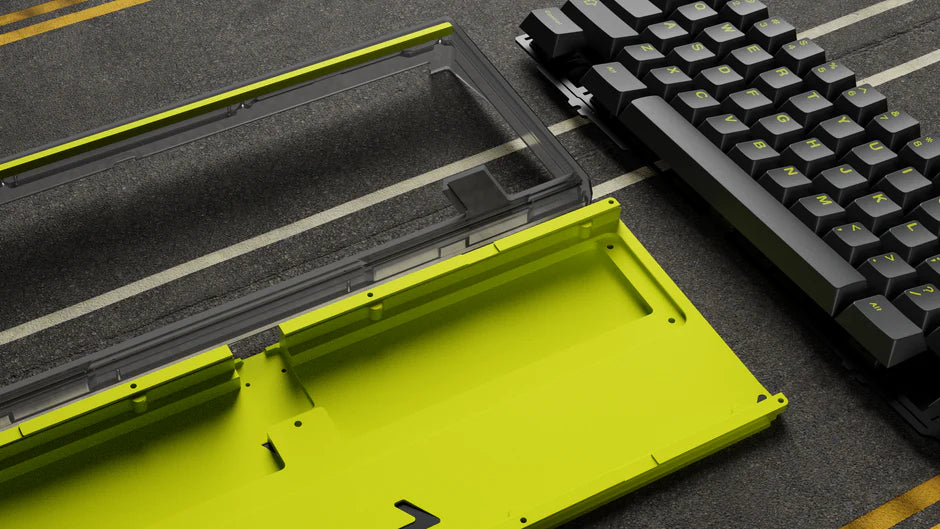

Package Contents
Barebones Kit
- 1x top case
- 1x bottom case
- 1x Top Accent
- 1x Bottom Accent
- 1x Battery Housing Brass Weight
- 1x Tri-mode hot-swappable pcb/Wired mode hot-swappable pcb
- 1x type-c daughter board
- 1x Polycarbonate plate
- 1x foam kit
- 1x Switch Pad Stickers、o-type silicone+silicone gasket、1.5mm Small wrench、screwdriver、Spare screws、Instruction card
- 1x dongle
- a set of stabilizer
Unleash Efficiency with Compact Precision
Aluminum elegance meets copper accents in Luminkey LX. Beyond comfort, enjoy delightful clicky sounds, endless DIY possibilities*, and ultra-low 2ms latency for a winning edge in work and game.（*pointed to change layout, switches and plate freely.)
Gasket mount | Non-Flexing Cut | Multiple Layout Support
- The gasket structure enhances typing elasticity.
- While the non-flexing cut PCB ensures consistent sound for each keypress.
- Multiple layout support, you can customize the keyboard to add or remove specific keys as needed.
Layouts

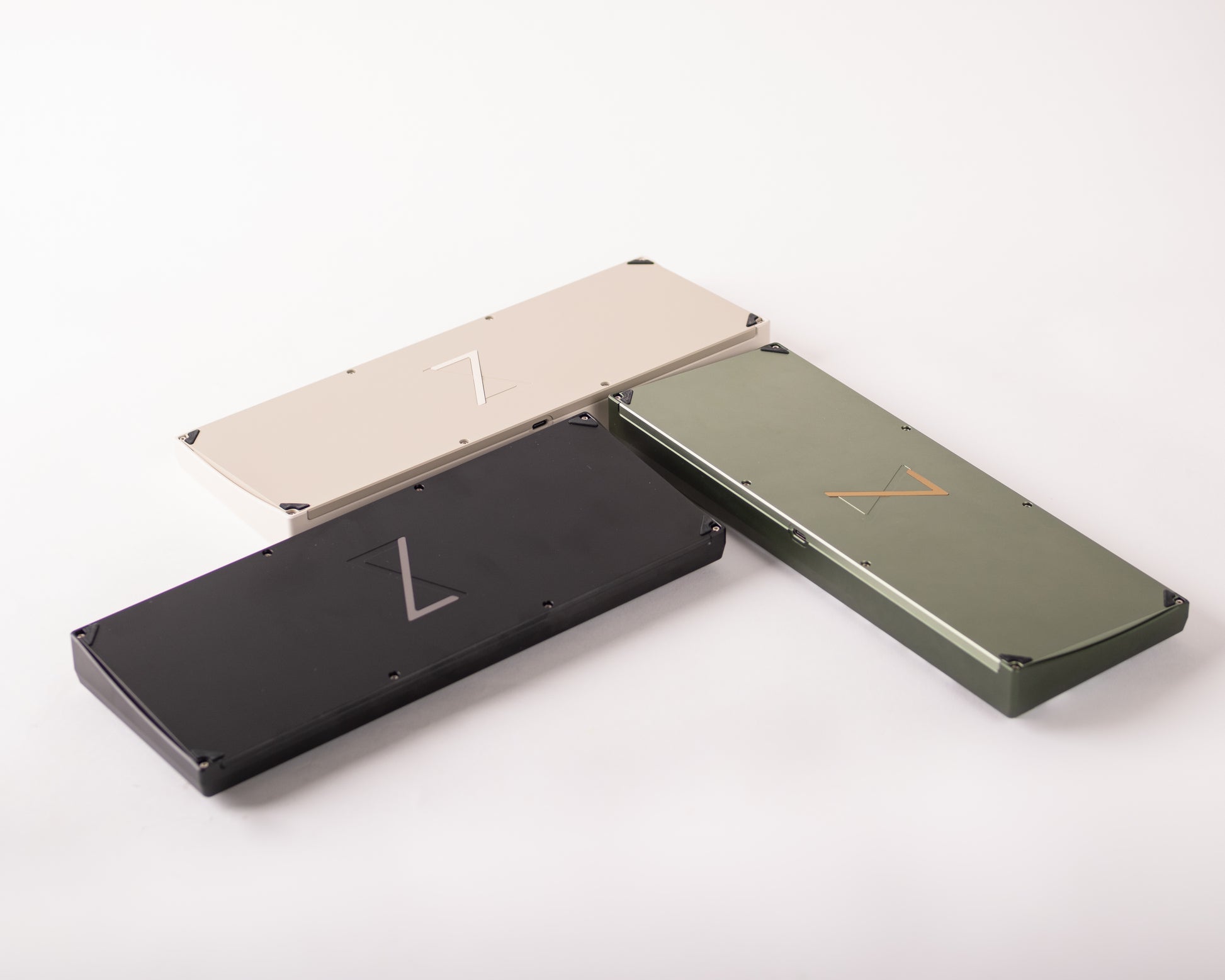

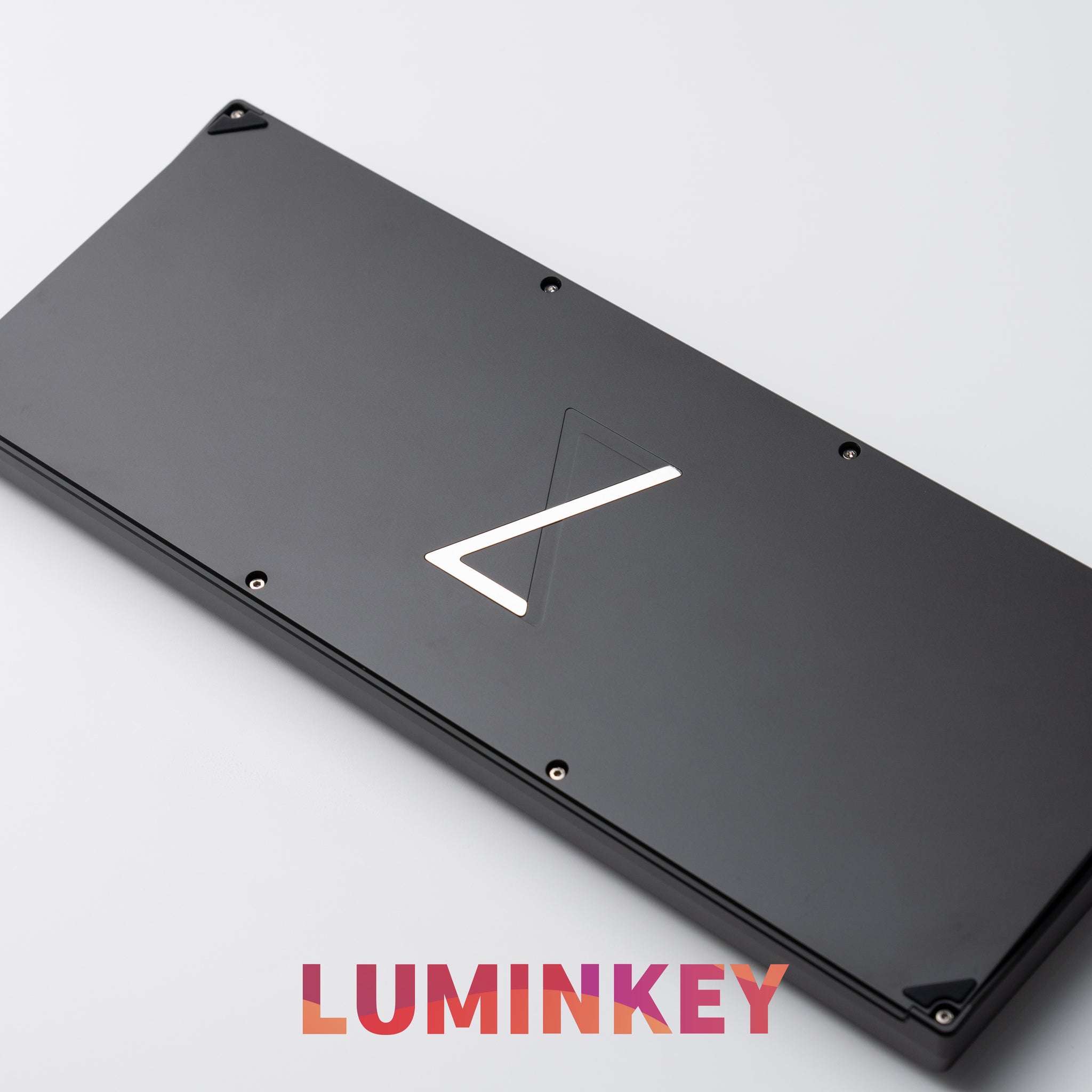

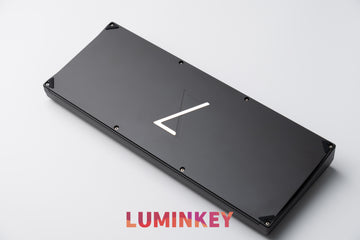

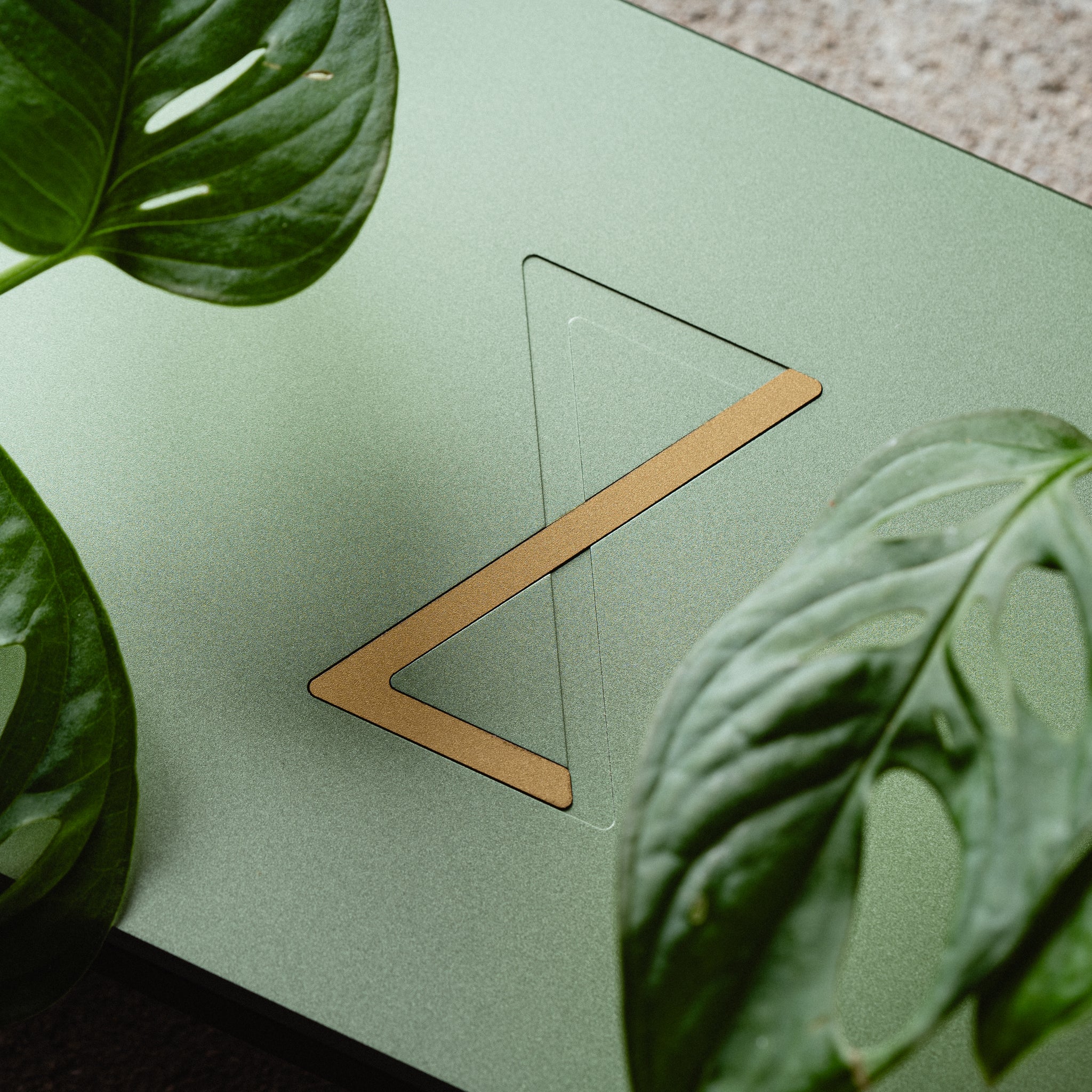

Designed by BowlKeyboards, this board seamlessly blends style and simplicity. Featuring a striking front accent and a uniquely exposed bottom case, it stands out with understated elegance. Optional accent upgrades are available starting at just $6.99
FR4 / PC / Aluminum / PP, which one are you chosing?
Different plates for different typing experiences!
